Sale!

SANGOMA SBC SBCT-SMB-020

59,000.00 ฿ 44,900.00 ฿

Session Border Controller (SBC) Small to Medium Business SBC
รองรับการใช้งาน 20 session/call หรือ 20 คู่สายพร้อมกัน
Compare

รายละเอียด

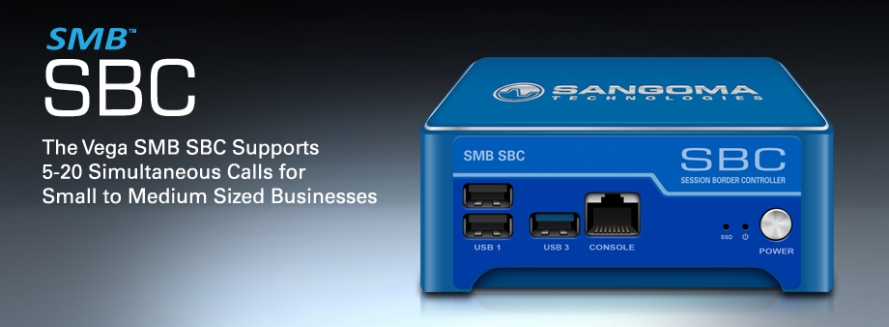

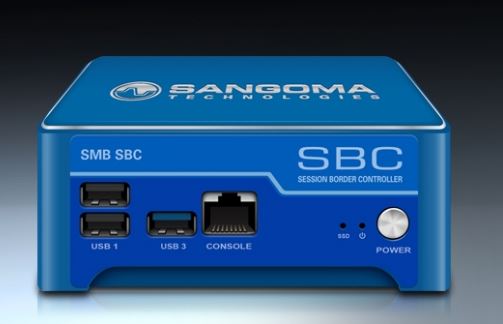

Sangoma SBC Appliance Small to Medium Business SBC

SBCT-SMB-020  VEGA SBC for SMB (NO DSP) 20 session/call

Session Border Controller (SBC) Small to Medium Business SBC

(NO DSP) คือ ไม่มีตัวชิปช่วยประมวลสัญญาณเสียง Digital Signal Processor กรณีเสียงจากทางต้นทางไม่ดีขาดๆหายๆ เสียงในระบบก็จะไม่ชัดเจนตามต้นทาง

ซึ่งส่วนใหญ่จะเป็นปัญหาทางด้านคู่สายโทรศัพท์แบบ Analog กรณีนำมาต่อใช้งานกับ SBC



รองรับการใช้งาน 20 session/call หรือ 20 คู่สายพร้อมกัน



คือ อุปกรณ์ที่ป้องกันการโจมตีทาง VOIP ในแบบต่างๆ เช่น Denial of Service (DoS) ,virus, Trojan, malware, การโจมตีระบบในรูปแบบ toll fraud เป็นต้น

ซึ่งในหน่วยงานหรือองค์กรบริษัทของท่านที่มีการใช้งานระบบโทรศํพท์ผ่านอินเตอร์เน็ต หรือที่เรียกว่า Voice over Internet Protocol (VOIP) หากมีการเชื่อมต่อไปยังภายในเพื่อติดต่อกันระหว่างสาขาหรือเชื่อมไปยังโครงข่ายคู่สายโทรศัพท์ภายนอก จากผู้ให้บริการ Provider ต่างๆ และเชื่อมต่อใช้งานกับผู้ใช้งานในองค์กรผ่าน Internet จากโครงข่ายภายนอกที่แตกต่างกัน หากมีการเชื่อมต่อในลักษณะนี้

มักจะมีความเสี่ยงสูงที่อาจจะถูกลักลอบการใช้งานหรือถูกโจมตีในลักษณะต่างๆ ตามที่ได้กล่าวมา ดังนั้นอุปกรณ์จำพวก Session Border Controller (SBC) จึงเข้ามาช่วยในด้านการรักษาความปลอดภัยในการเชื่อมต่อ

ระหว่างระบบโทรศัพท์ไอพีภายในกับภายนอก เพื่อกำหนดเป็นมาตรฐานหรือ Policy ในการติดต่อสื่อสารให้เป็ไปตามรูปแบบที่เราสามารถกำหนดได้ให้แตกต่างจากมาตรฐานที่ใช้กันโดยทั่วไป

ทั้งนี้ก็เพื่อความปลอดภัยในการติดต่อสื่อสารและป้องกันอันตรายจากบุคคลภายนอกหรือเหล่า Hacker เข้ามาในระบบ



ซึ่งส่วนใหญ่ผู้ให้บริการรายใหญ่ๆ ในประเทศที่ให้บริการเลขหมายโทรศัพท์ไอพี ก็จะใช้อุปกรณ์ประเภท SBC ทั้งสิ้นในการให้บริการเชื่อมต่อ ซึ่ง Sangoma SBC ก็เป็น 1 ในหลายๆยี่ห้อที่นิยมใช้กัน







  • 5-20 simultaneous calls
  • Migrate to SIP trunking or Hosted PBX securely
  • High Availability for active/standby redundancy for mission critical businesses
  • DoS/DDoS attack protection
  • Network interconnect point for SIP trunking
  • Topology hiding for fraud protection







Session Border Controller (SBC) VoIP Protection at its Best

Businesses connecting their infrastructure to a SIP Trunk, or VoIP Connection, require a Session Border Controllers (SBC) for security, interoperability and transcoding. Often times, businesses will forget the importance of an SBC when switching from their legacy phone system to VoIP and simply use their existing firewall for protection, and make a huge mistake! A typical firewall can only protect your data network and as soon as you as you open it up to the internet, which is how you connect to VoIP services, the entire network is exposed. The other pitfall of using your existing firewall, instead of an SBC, is that phone calls may not connect or there will be audio issues. An SBC will automatically do the call translations for you, with the built-in interoperability features and also translate the audio with built-in transcoding capabilities.

A Sangoma SBC protects both your data and voice network and is designed to handle every aspect of phone call interoperability challenges, audio transcoding and security that travel over the internet (or voice-over-ip phone calls).

sbc

Advanced Web GUI
Browser-based GUI use for configuration, control and monitoring of SIP trunks, network connections and security threats. Easy to use dialplan routing for basic and advanced call routing configurations. System logs and reports are also available directly from the GUI.

sbc

Diagnostic Tools
Browser based dashboard featuring time based graphing, system and session error reporting and email notifications upon faults. Onboard PCAP training tool capturing signaling and media, eliminating the need for extra port mirrors or hubs. The Hardware Crash protection feature reboots the system on lockup or hardware fault.

sbc

Simplified Licensing
All SBCs are field upgradable and licensing is per session based, which means all the features are always included – No sticker shock. Predictable SBC capacity and cost in every use case.

sbc

Hardware Redundancy
Guarantee business continuity during catastrophic hardware failures by mirroring 2 SBCs together. Available free-of-charge, out-of-box!

sbc

Security
Protection against malicious attacks such as Denial-of-Service, Fraud, BYOD, and SIP & RTP flooding. Toll fraud protection against hackers breaking into VoIP systems causing financial turmoil. Topology hiding for protection against exposing network routes.

sbc

Virtual Machine Options
For integration within existing data centre infrastructures, our SBCs are also offered in a software platform version which contains the same feature- rich capabilities as our scalable appliances and compatible in most VM environments including VMware, Hyper-V, KVM and Amazon Web Services.

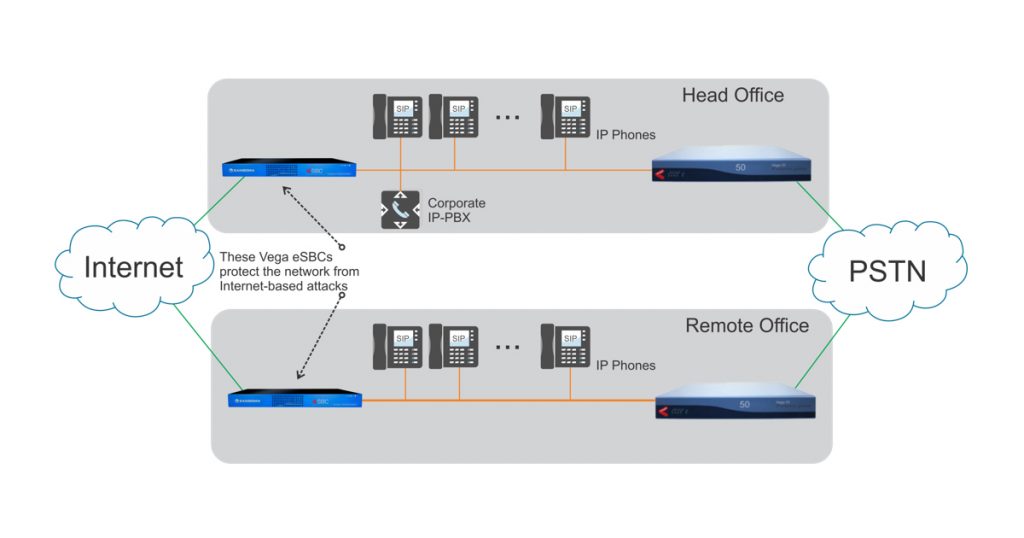

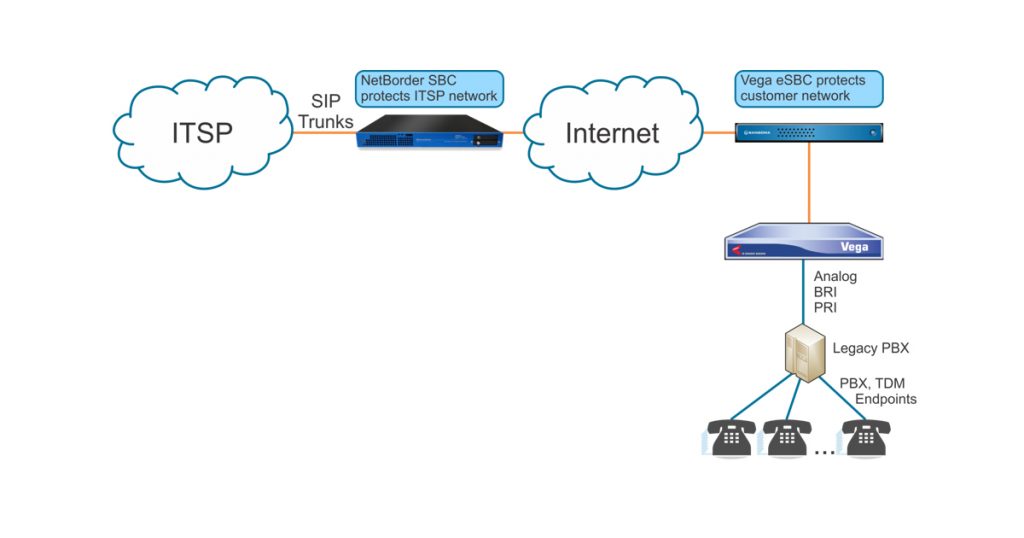

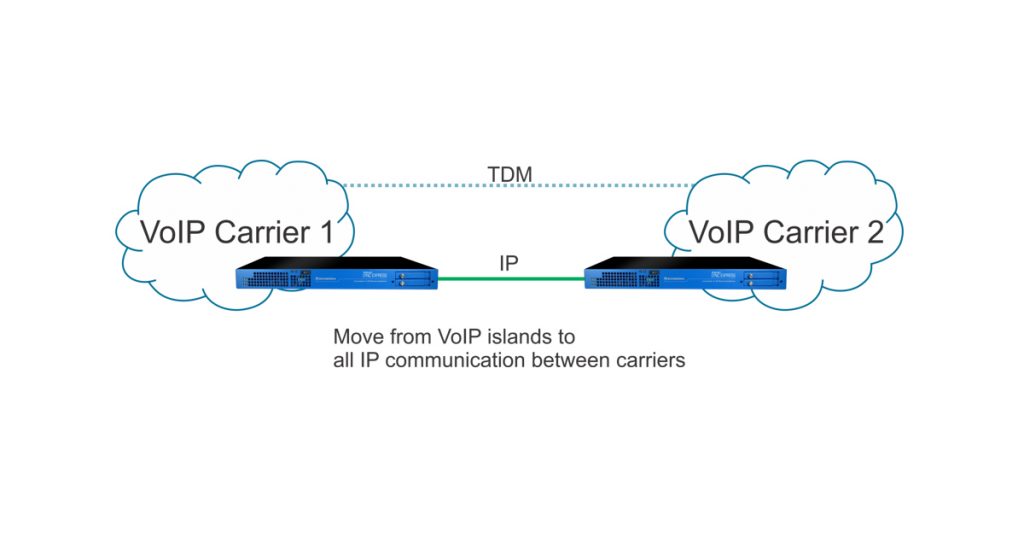

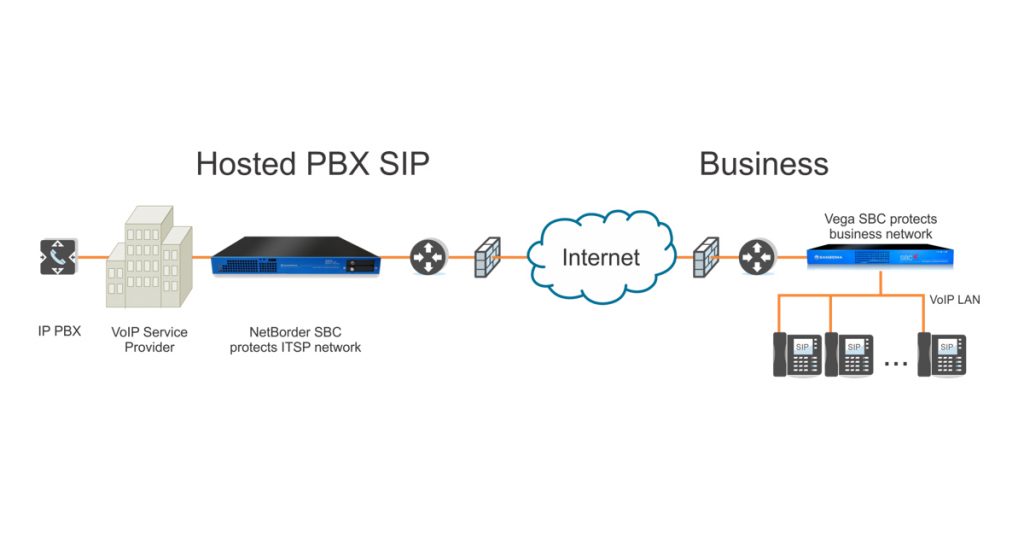

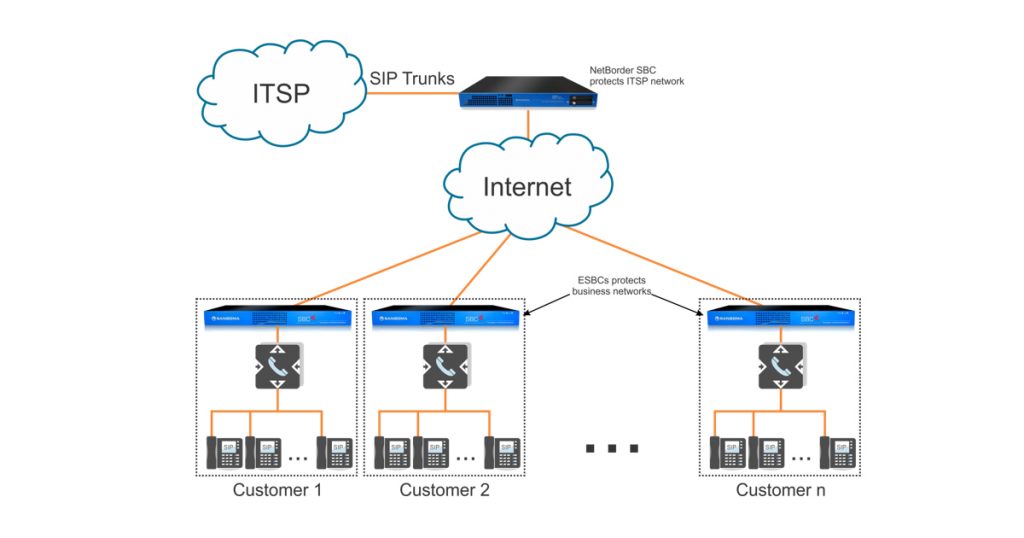

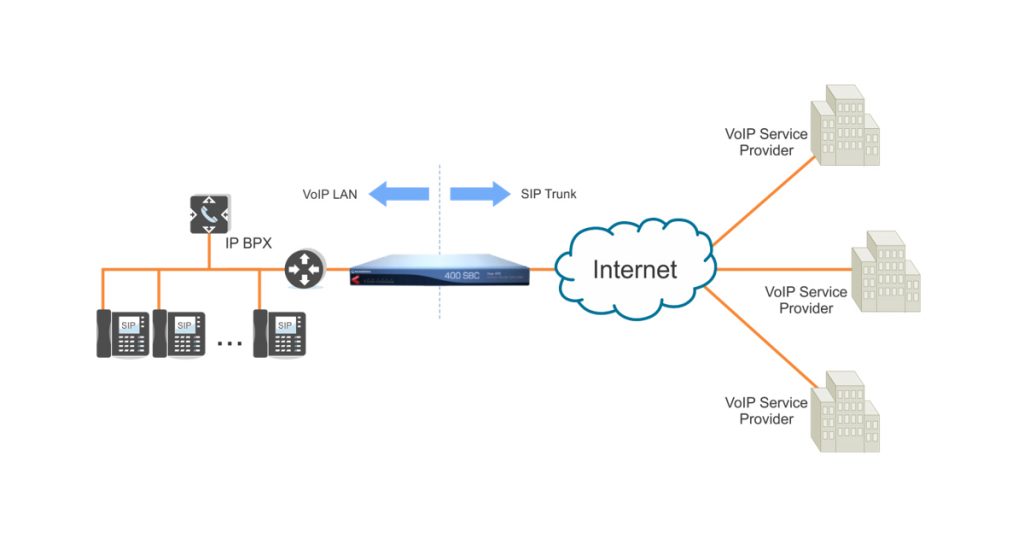

รูปแบบการต่อใช้งาน

SBC Features

Capacities
  • Max Call / Sessions
    • 4000 – NetBorder Carrier
    • 500 – VM SBC
    • 250 – Vega Enterprise
    • 20 – SMB SBC
  • Unlimited SIP trunks
  • Max. 120 TDM-SIP calls/sessions *Applicable only to Vega Enterprise
  • Full security (SRTP/TLS) capability
  • Full Transcoding Capability
VoIP
  • SIP 2.0 compliant
  • SIP intrusion prevention
  • SIP trunking and remote working
  • SIP registration pass-thru
  • SIP malformed packet protection
  • Topology hiding
  • ENUM routing
  • SIP request rate limiting
  • SIP registration scan attack detection
  • SIP friendly load limitation
  • SIP header normalization
  • Advanced NAT traversal capabilities
Call Control
  • Least cost routing
  • Multiple call access control options
  • Rate limiting: Call and registration
  • Endpoint authentication
  • Dynamic load balancing and call routing
  • Advanced XML routing engine
  • Intelligent media anchoring/release
  • Media bandwidth policy
Networking
  • 10/100/1000 BaseT Ethernet ports
    • 7x – NetBorder Carrier
    • 3x – Vega Enterprise
    • 4x – SMB SBC
  • IPV4, IPV6
  • VLAN support
  • 1x IPMI port *Applicable only to NetBoarder Carrier SBC appliance
Debugging
  • Dedicated Browser interface for capturing full RTP media and signaling information
  • Onboard browser-based PCAP tracing, signalling and media – wireshark compatible
  • Large onboard storage capacity for long term tracing
Media Capabilities
  • Voice, Video, FAX, IM and Presence support
  • Full RTP transcoding (G.711, G.722, G.729, G.726, G.723.1, iLBC, AMR, G.722.1) *Only with hardware transcoding option
  • T.38 Fax Relay *Only with hardware transcoding option
Security
  • DDoS / DoS attack protection
  • Media security with SRTP
  • IPSec encryption
  • IP firewall with port forwarding
  • Call security with TLS/SRTP
  • Two-stage authentication
Session and Monitoring
  • Multiple session routing options
  • RTCP statistics reports
  • QoS (ToS or DSCP)
  • RADIUS CDR and authentication
  • QoS monitoring and reporting
Management
  • Easy to use web interface
  • Real-time monitoring and debugging
  • HTTP XML-based CDR
  • TR-069 for remote provisioning
  • REST based interface to remotely configure SBCs
Licensing
  • Only max. number of calls are licensed
  • Field upgradeable in 5/25/50/100 call increments
High Availability / Redundancy
  • 1:1 active/standby two-box redundancy to guarantee business continuity

SBC Specifications


Hardware

SMB SBC
  • Power: External universal AC adapter: AC 100~240V input ‑ DC 5V/1.2A output
  • Dimensions: 127mm (W) x 127mm (D) x 50mm (H)
  • Weight: .68kgs (1.5lbs)
  • Wall Mounting Plate Included
Vega Enterprise
  • Power: 60W universal internal power supply
  • Dimensions: 430mm (W) x 305mm (D) x 45mm (H)
  • Weight: 7.25kgs (16lbs)
  • Mounting clips included
NetBorder Carrier
  • Power: Internal AC: 300W, dual, modular universal power supplies
  • Dimensions: 430mm (W) x 470mm (D) x 45mm (H)
  • Weight: 15kgs (33lbs)
  • 19 inch rackmount brackets included

Interfaces

Telephony Interface

*Applicable only to Vega Enterprise

  • Up to 4 E1/ T1s (with A101DE/A102DE/A104DE card)
  • Echo cancellation up to 128ms tail
  • Primary rate ISDN, configurable NT/TE
  • T1: Q.931, NI2, 4ESS, 5ESS, DMS-100
  • E1: Q.931, ETSI





Brand

Sangoma

Sangoma

ข้อมูลเพิ่มเติม

น้ำหนัก 0.68 kg
